Submersible mixers


Faggiolati submersible mixers, rugged in construction, high efficiency watertight electric motors accomodated in compartment, connected by shafts of reduced lenghts, to the impellers situated by the interposition of oil chamber between the hydraulic side and the electric motor. Watertight asynchronous, three-phase motors, protection class IP 68, insulation class H.


The mixers are designed for S1 (continuous) operation, with a maximum overload of up to 10% ambient cooling at a temperature of 40°C. Maximum of 15 starts per hour. The motor is cooled by thermal exchange with surrounding fluid/medium.


The largest part of the mixer series is also available in Atex zone 1. The largest mixer, GM/XM 60, is also available in the permanent magnet motor version.



Atex Logo



Extra information
Download datasheet

Faggiolati mixer cross section

1 : Shaft in Duplex stainless steel.

2 : Motor asynchronous, 3Ph, 4, 6, 8, 10 or 12 pole, insulation class H (180 ° C).

3 : Upper mechanical seal: ceramic / carbon.

4 : Lower mechanical seal: silicon carbide / silicon carbide.

5 : Motor housing: cast iron EN-GJL-250 or stainless steel AISI316L.

6 : Propeller: AISI316L stainless steel.

Why u would
choose this product

High-quality machines

Top quality mixers

Version for higher temperatures

Motors can be made suitable for higher medium temperatures (>60°C!)

Wide range of materials

Depending on the medium, cast iron ENGJL-250, AISI316, Duplex 4A or Superduplex 5A can be selected.

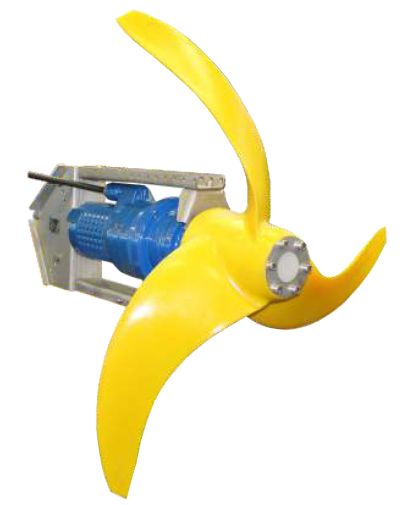

Submersible mixers tekening
