The Liverani wobble pump has compact and linear design, it has a good price-performance ratio and not pulsating flow
without jeopardize the physic, chemical and organoleptic characteristics of fluids. The wobble pump
is used for many different application, slightly abrasive, viscous or gravel liquids. The st. steel version
is particularly suitable for food grade fluids and bronze version is for marine use.


Materials and options :


Pump housing parts: GG25, CF8 (stainless steel 304), CF8M (stainless steel 316) or Bronze


Rotor materials: SS304, SS316, optional hard chrome plated


Stator materials: NBR, food-grade NBR, white food-grade NBR, EPDM, food-grade EPDM, white food-grade EPDM and FPM (Viton)


Connections: gas thread BSP or DIN11851 connections


The pump is available on base plate, mobile trolley, hoistable skid or trolley suitable for the food industry. It is also possible to supply the pump with a control panel (possibly with integrated frequency converter). Optional are mounted by-pass and motor protection cover.

Extra information

Wobble pump cross section

Unlike conventional progressive cavity pumps, this pump has a rotating unit with only one coupling, therefore the stator "wobbles."

Why u would
choose this product

Compact pump

Multi-purpose

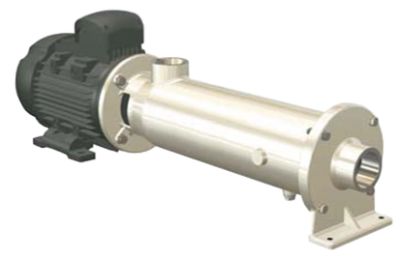

Wobble pumps tekening
