Arial-Jet product image


Arial-Jet (AJ) is a self-priming aerator that injects air into sewage through a radial diffuser by Venturi effect. The submerged aeration unit, which sucks in air under atmospheric pressure through a special tube, forces this air in the form of fine bubbles through a radial diffuser under pressure into the sewage/wastewater.



                             Arial-Jet working


Extra information

Arial-Jet exploded view

The radial impeller is specially designed for double suction. The upper inlet is in direct contact with the liquid, while the lower inlet is connected to the air intake hose by a Teflon sealing system. The action of pumping the liquid creates a stable and increased vacuum at the bottom of the unit. The subsequently drawn air is forcefully mixed with the liquid pumped into the channels of the impeller and reduced to fine bubbles.

Why u would
choose this product

Easy to move

Dual operation

The Arial-Jet homogenizes and aerates at the same time.

Sucks in air automatically

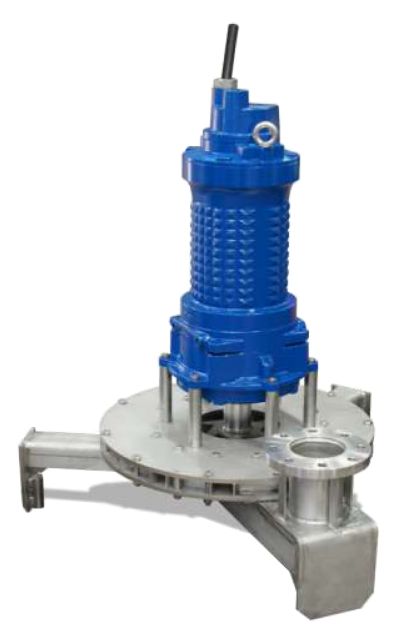

Arial-Jet tekening
