Doseuro SR Series type SD

PUMP HEADS


Pump heads are manufactured in standard materials: S.S.316 and PVC. A wide range of other materials such as HASTELLOY, ALLOY, PTFE, PVDF and PP are also available.


DIAPHRAGM RUPTURE DETECTOR

By means of ;
- Pressure gauge
- Pressure switches
- Ex-proof Pressure switches


STROKE ADJUSTMENT


Flow rate adjustment is possible while the pump is running or stopped. The movement of the diaphragm is based on a precise reciprocating gearbox which provides an exact volumetric displacement. Stroke adjustment can be carried out by the following:
- Manual: by a linear micrometer strokeknob.
- Electrical: via servo motor with 4-20 mA input signal or interfaced with PROFIBUS or other BUS.
- Pneumatic: by a pneumatic servo controller with signal from 3 to 15 PSI air input.


SUCTION AND DISCHARGE CONNECTIONS


Standard : threaded
Upon request: Flanged, UNI , ANSI or NPT.
All pumps use ball check valves as standard: single or double balls in each valve ,determined by the piston diameter or the materials of construction.


MULTIPLE HEADED PUMPS


Pumps with multiple heads are available upon request. Flow rates of each pump head can be adjusted independently while running or stopped.


This series is also available in Atex execution.


Security logo ATEX



Extra information
Download datasheet

Cross Sandwich Hydraulic diaphragm metering pump

SD-type sandwich hydraulic diaphragm pumps are available in different dimensions:


- SD 125N: Stroke length 12.5 mm


- SD 175N: Stroke length 17.5 mm


- SD 250N: Stroke length 25 mm


The above models have different diaphragm sizes for varied apacities and pressures.

Why u would
choose this product

Optimal price-quality ratio

High reliability

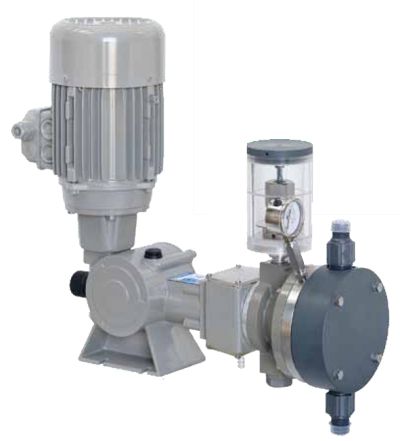

Doseuro SR Series type SD tekening
