type D


D-type pumps are the most heavy duty and industrial mechanical diaphragm dosing pumps. Pump is fitted with a standard gearbox reduction system with a vertical mounted motor (4 poles). The reduction gearbox is a standard endless screw plus worm-wheel type, supported by bearing, fully lubricated in oil bath.


Pumping heads


Pump heads are made in standard versions: stainless steel 316, PP, PVC or PVDF. The membranes are PTFE coated.


Stroke adjustment


Stroke adjustment can be carried with the pump at rest or in operation and it can be manual
or automatic through automatic actuator driven by 4-20 mA; different BUS; pneumatic.


MULTIPLE HEADED PUMPS


Different multiple heads units are available on request.
Each pumping element has independent adjustment while running or at standstill.


This series is also available in Atex version.


ATEX safety logo




Extra information
Download datasheet

Cross section Spring Return Mechanical Diaphragm D

The D-type pumps are available in different sizes:

- D 050 N, Piston stroke 5 mm
- D 100 N, piston stroke 10 mm
- D 101 N, Piston stroke 10 mm
- D 121 N, Piston stroke 12.5 mm

- D 122 N, Piston stroke 12.5 mm

In combination with the different possible membrane diameters, 30, 50, 70, 90, 105, 120, 140 and 160 mm.

Why u would
choose this product

Optimal price-quality ratio

High reliability

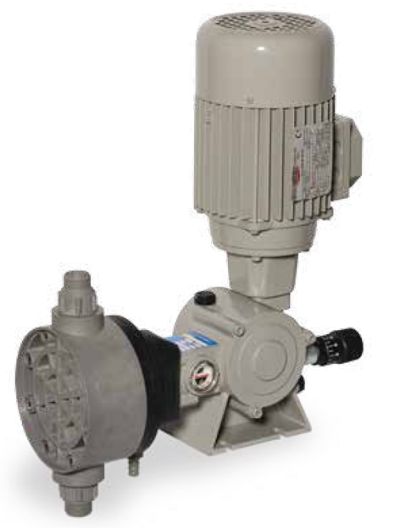

Doseuro SR Series type D tekening
