Doseuro SR series type B & BR


B - hydraulic diaphragm type
BR - hydraulic diaphragm type with an internal relief - refilling valve


Pump is fitted with a standard gearbox reduction system with a vertical mounted motor (4 poles). The reduction gearbox is a standard endless screw plus worm-wheel type, supported by bearing, fully lubricated in oil bath.


Pumping heads

Pump heads are made in standard versions: stainless steel 316, PP, PVC or PVDF. The membranes are PTFE coated.


Stroke adjustment

Stroke adjustment can be carried with the pump at rest or in operation and it can be manual or automatic through automatic actuator driven by 4-20 mA; different BUS; pneumatic.


MULTIPLE HEADED PUMPS

Different multiple heads units are available on request. Each pumping element has independent adjustment while running or at standstill.


This series is also available in Atex version.


Atex EX Logo



Extra information
Download datasheet

Cross section Spring Return Mechanical Diaphragm D

B and BR series hydraulic diaphragm pumps are available in different sizes:

- B 125N / BR 125N, Stroke length 12.5 mm
- B 175N / BR 175N, Stroke length 17.5 mm
- B 250N / BR 250N, Stroke length 25 mm

For these three types, different diaphragm sizes are available to suit different applications for capacity and pressure.

Why u would
choose this product

Optimal price-quality ratio

High reliability

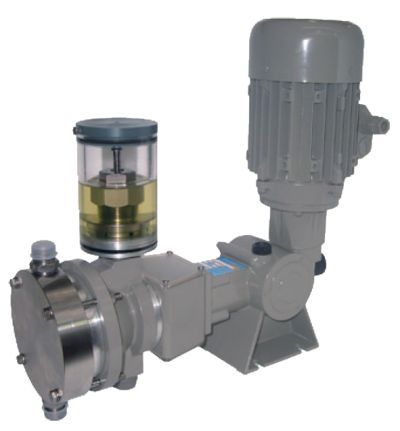

Doseuro SR series type B & BR tekening
