The dimensions and flange sizes of our RS pumps are based on ISO 5199 chemical standard pumps.


Our RS pumps are distinguished in particular by;


- Pump casing and impeller are cast, AISI316/CF8M, by means of lost wax method.

    The RS pump is therefore the more robust and durable alternative to the sheet steel pumps.


- Large free solids passage up to 50 mm due to recessed impeller.


- Close-coupled pump with stub-shaft and with standard IEC motor (various motor brands available).


- Various shaft sealing forms possible; single, double tandem, double back-to-back and

    stuffing box packing.


- Connections; flange connection (UNI2278 PN16) or DIN11851.



- The RS series is available in Atex zone 1 and 2.


Extra information

RS sectional view

The impeller creates a vortex in the pump casing which accelerates the fluid in the pump casing. This makes it possible to pump large solids and long fibers in the medium without clogging the pump. Even delicate or valuable components in the medium can be pumped without damage; the so-called "Soft pumping". This impeller shape also allows liquids containing 50% gas/air to be pumped.

Why u would
choose this product

Robust and durable

Our RS pump is the industrial and professional alternative to the sheet metal pumps in the market.

Very wide application range

The versatility of versions makes the RS pump very widely applicable.

Optimal price/quality ratio

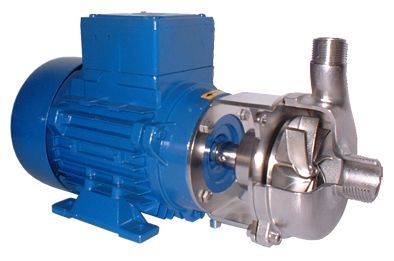

RS series vortex pumps tekening
